Input Voltage:200V~750VDC, 500V~850VDC, 500V~940VDC
Output Voltage:14VDC, 28VDC, 48VDC
Output Power:3kW
Efficiency:≥93%
Control:CAN/Enable
Dimension:267*122*62mm
Request a quote:Click Here

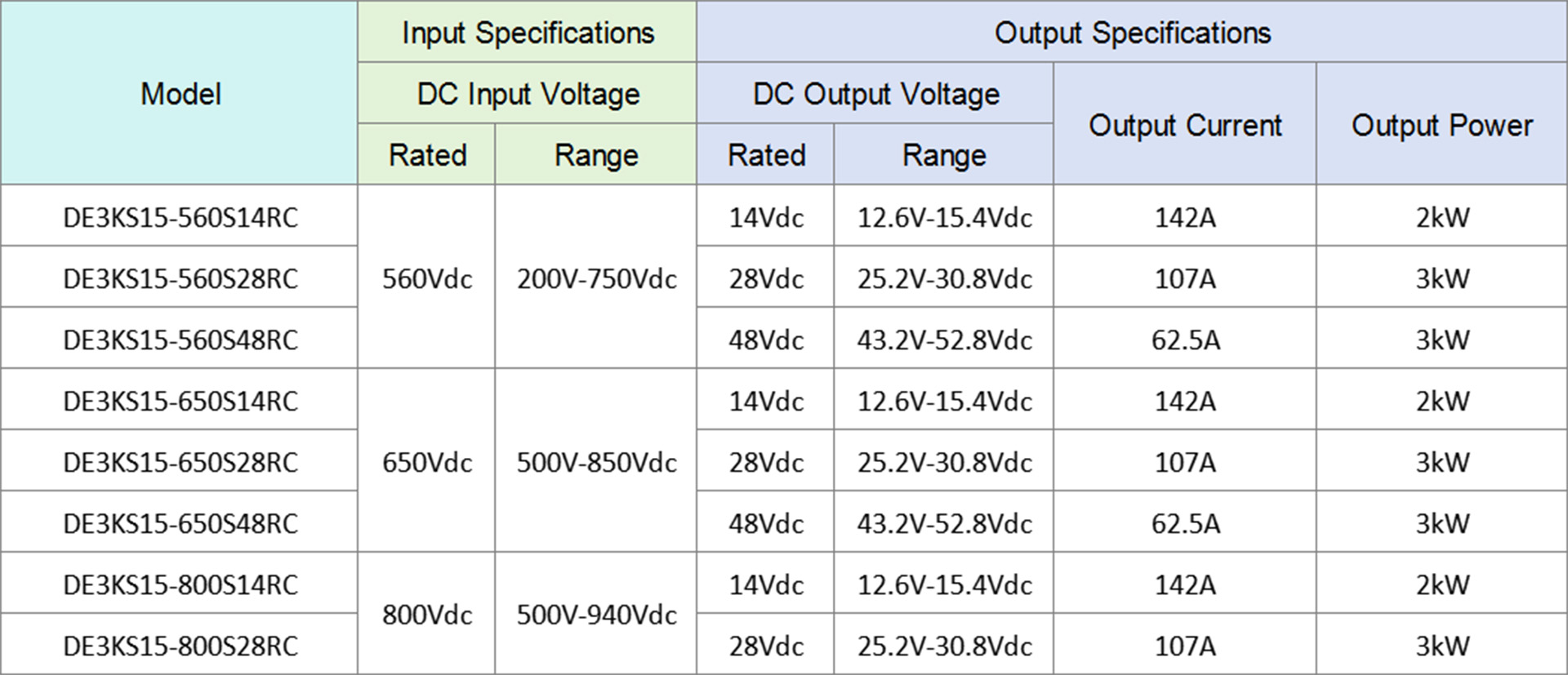

Please refer to the table below for product specifications.
Dilong DE3KS15 series open frame DC DC converter is a high-power, small-volume DCDC converter specially designed for pure electric vehicles . The converter has wide input voltage range and of 200Vdc to 940Vdc, solving the problem of choosing multiple DC converters for different vehicle type, avoiding repeated design and achieving the purpose of generalization and modularization; It adopts digital processing technology, with CAN communication, able to report data to CAN bus and accept power on command of CAN bus at the same time, monitoring the working status of DCDC converter in real time.
